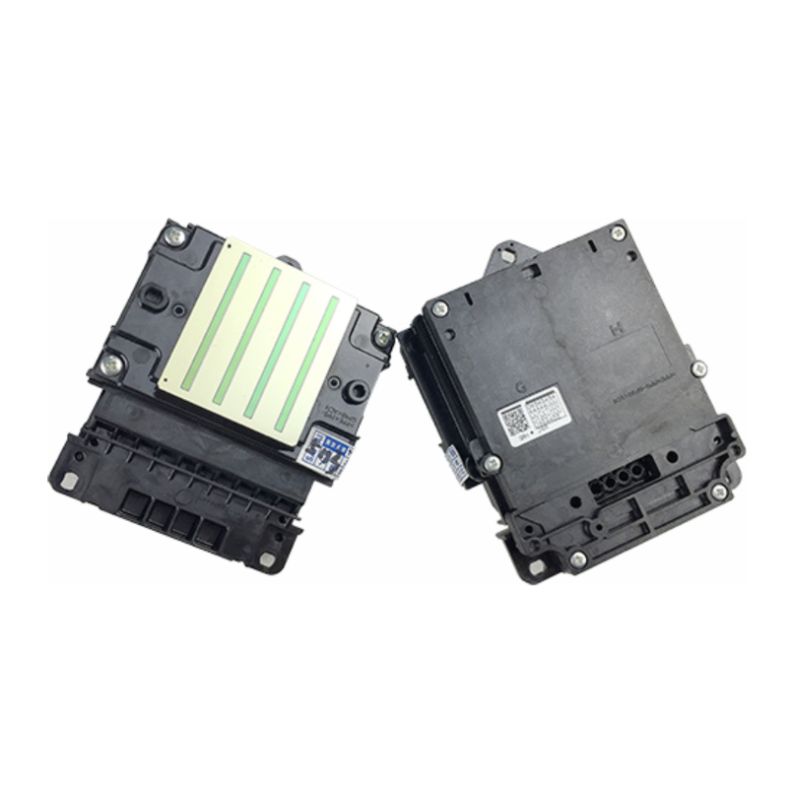

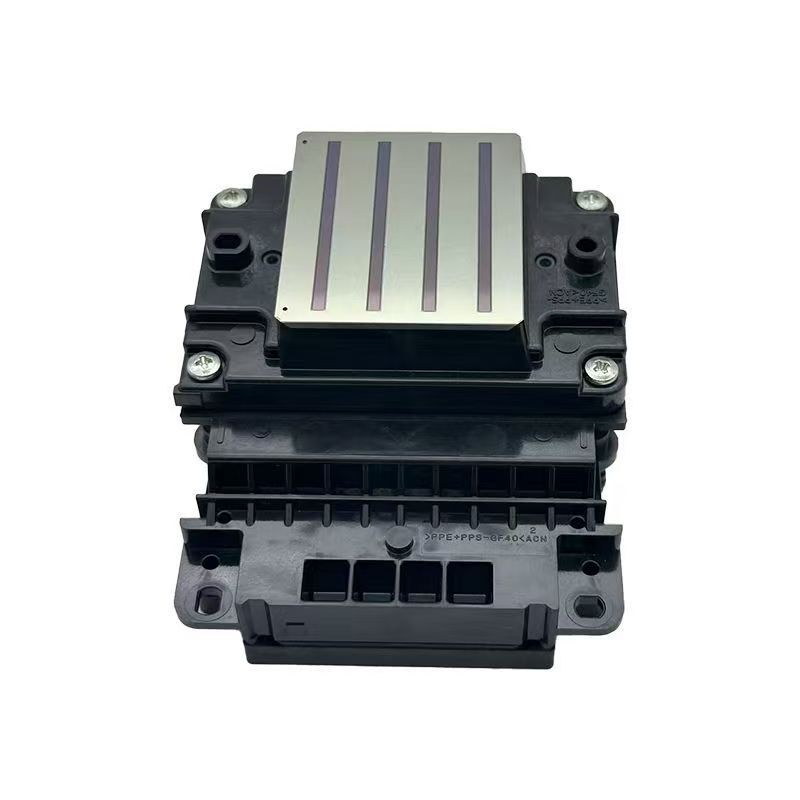

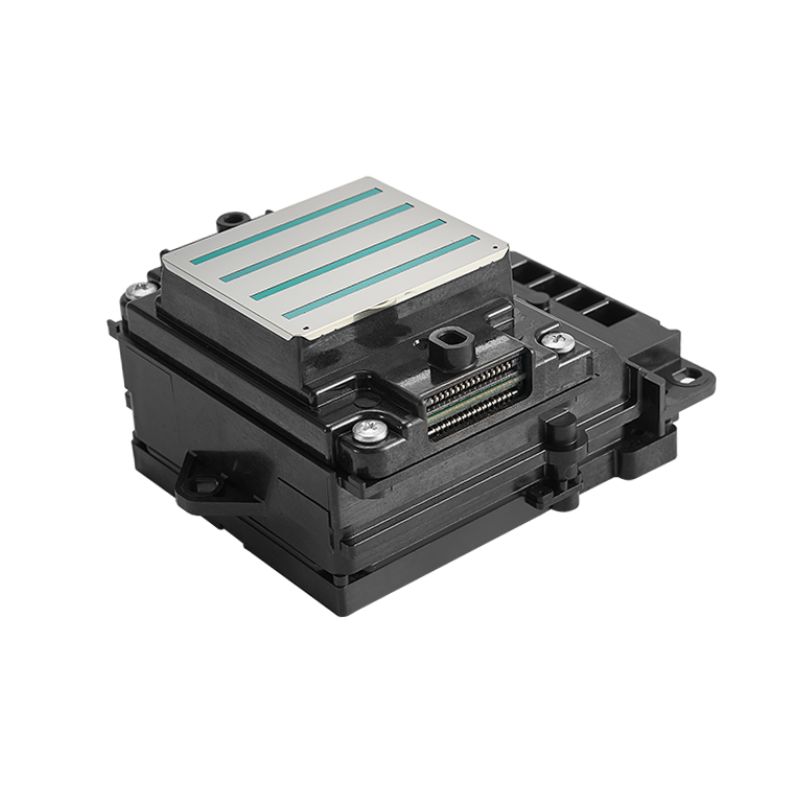

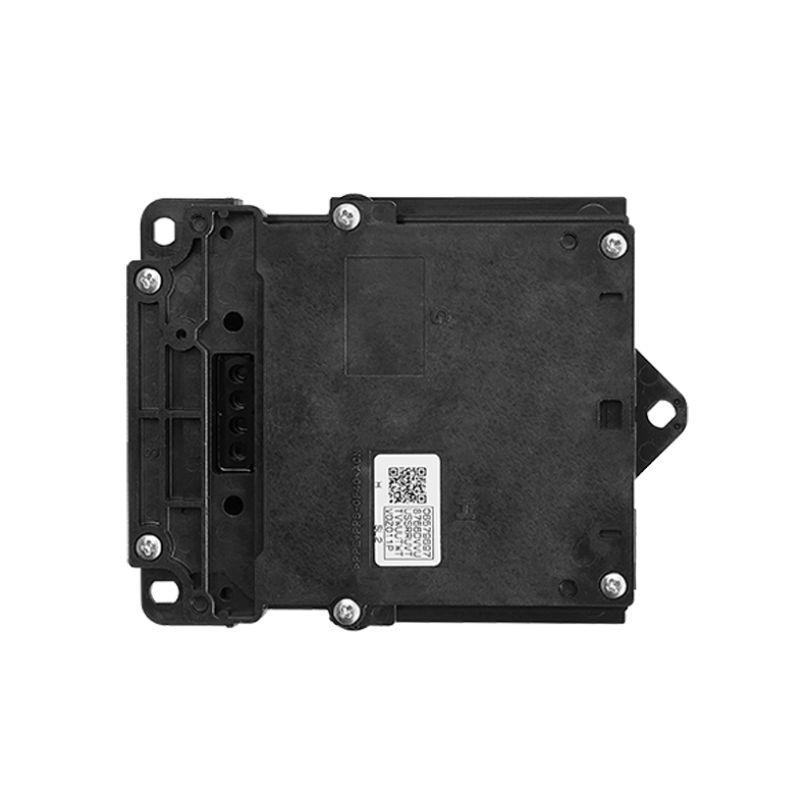

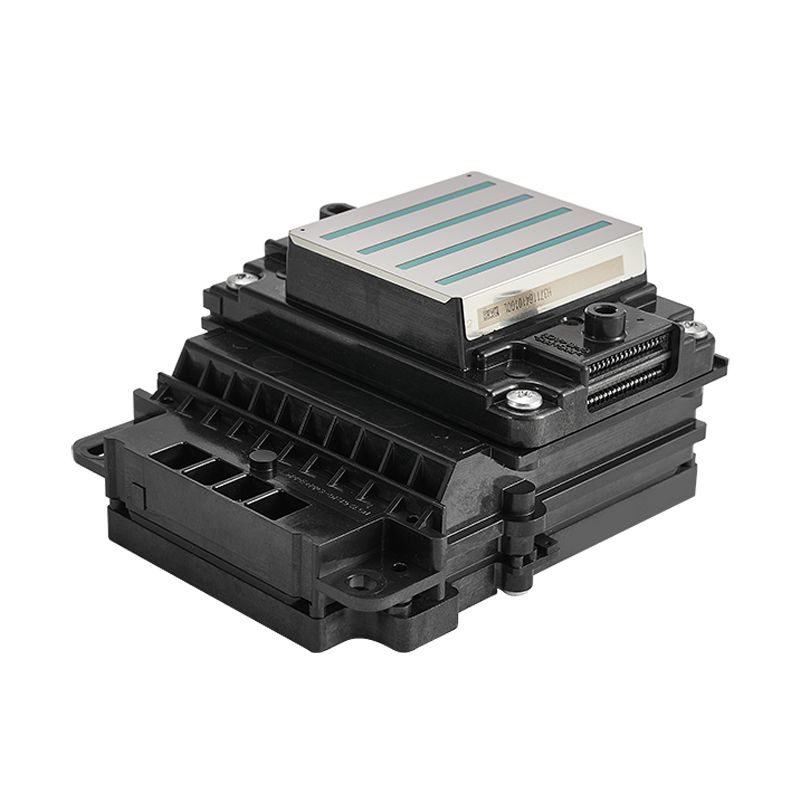

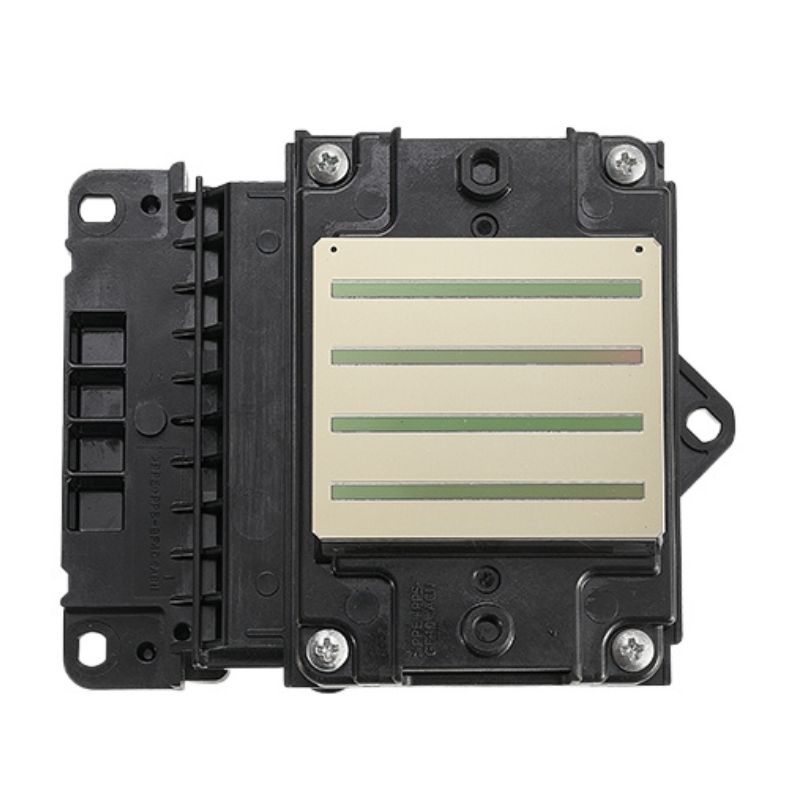

Epson 5113 Printer Head For Digital Printing Machine

in PRINTER HEADS & CABLES

Available in stock

Features

The Epson 5113 Printer Head nozzle arrangement is 5113x400, 1.3-inch nozzle, which is taller and wider than the traditional DX30 and DX5 nozzles. Due to the large number of nozzles in this Epson print head and the high physical resolution of the nozzles, the 5113 print head machine can achieve 3PASS high-speed printing, with a single print head speed of up to 30 square meters per hour.

Compare Wishlist

Description
Reviews (0)

Description

The Epson 5113 Printer Head can replace the DX5 print head when using water-based ink. Its larger number and height of nozzles prove that it has a faster speed and efficiency, and it has a more cost advantage than DX5 and DX7.

Product Specifications – Epson 5113 Printer Head

Model	Epson 5113
Ink Types	water-based
Ink Types	eco-solvent
Size(width x depth	920730420mm
x height)(mm)	920730420mm
Weight(g)	886
Nozzle Numbers	3200
Length Between Nozzles	300
(inch)	300
Nozzle Row	8
Max color/head	4
Resolution	300npi/1row
Resolution	600npi/2row
Effective Printing	33.02
Width(mm)	33.02
Jet Freqency(kHz)	43.2(single dot),
Jet Freqency(kHz)	21.6(multi dot)
Ink Drops(pl)	3.8-6-12(9.4)
Ink Viscosity	3~4
(mPa.s)	3~4

Product Application

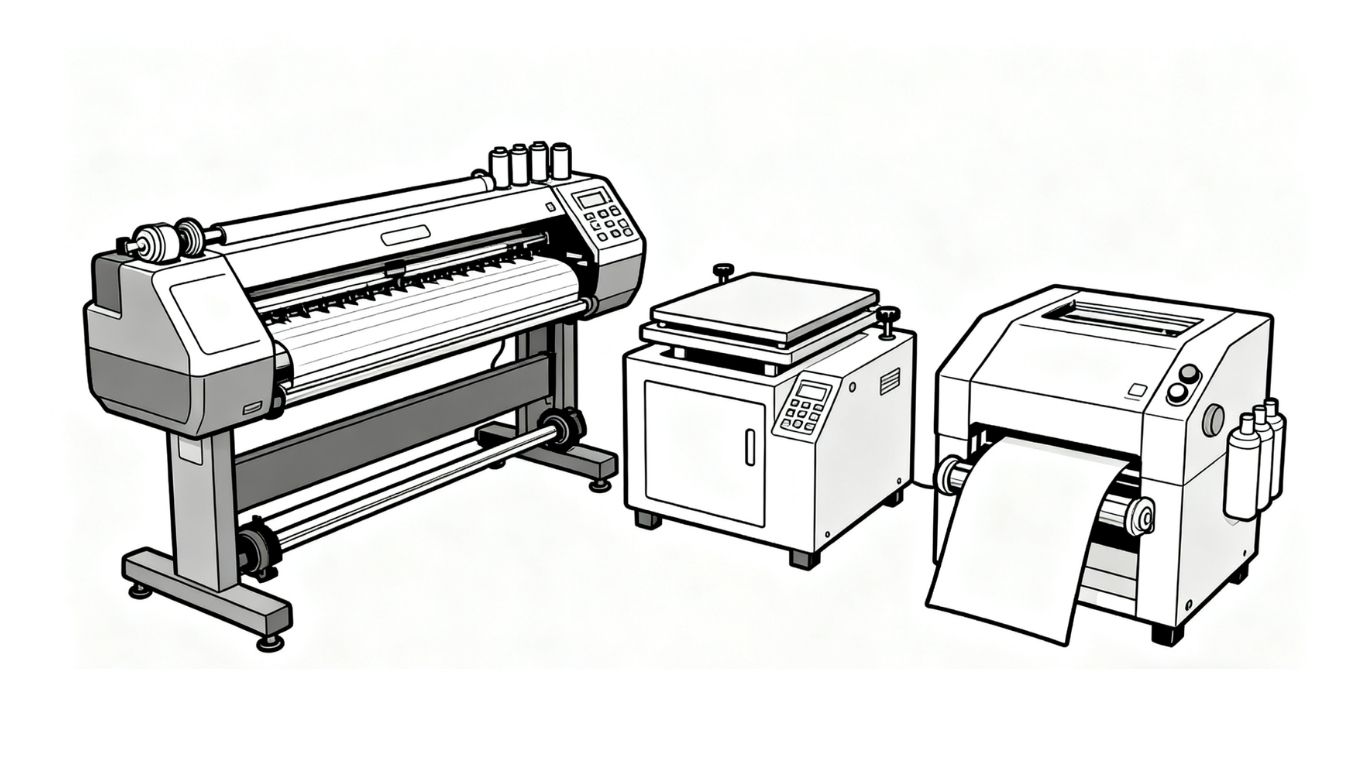

The Epson 5113 Printer Head features ready-to-use upon installation, smooth inkjet, clear printing, rich colors, stability and durability. It can effectively avoid problems such as print line breakage, accumulation and blurring, and nozzle blockage. It is widely applicable to equipment such as photo printers, thermal transfer printers, and DTF printers.

epson 5113 printhead application

FAQ

Q: What advantages does the Epson 5113 Printer Head have compared with DX5 and DX7?
A: With a greater number of nozzles and larger nozzle sizes, the printing speed is fast, the efficiency is high, and the output effect is good. In terms of cost comparison, it has an extremely high cost performance.
