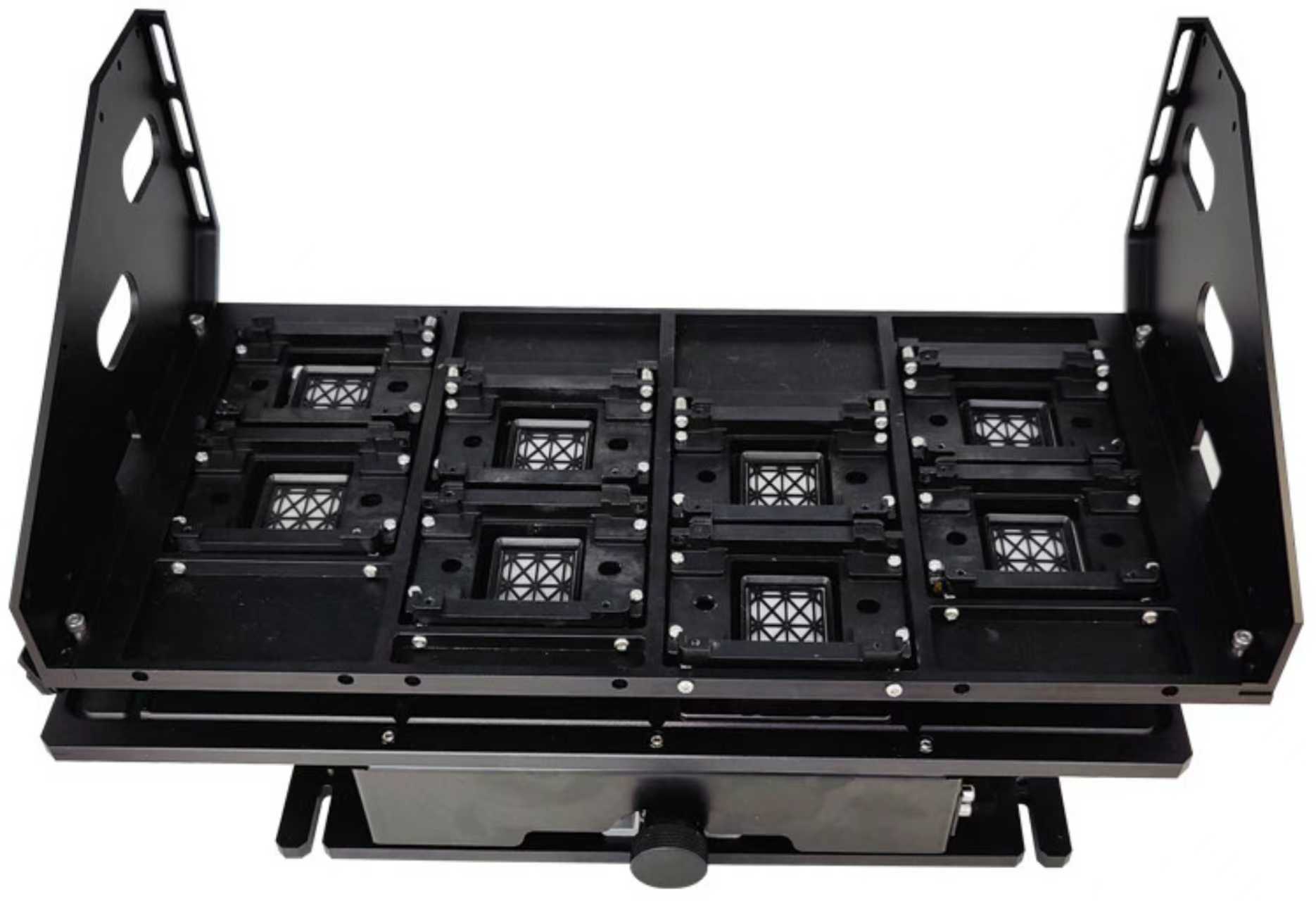

8 heads capping station

An 8-head capping station is an essential component of inkjet printers and other multi-head printing systems. It is primarily used to cap, clean, and maintain the print heads of printers. Below is a detailed description:

Function and Purpose
• Protecting Print Heads: When the printer is not in use, the print heads rest on the capping station. The sealing members of the capping station form a tight seal around the nozzles of the print heads, preventing ink from drying, leaking, or clogging, thereby extending the lifespan of the print heads. The sealing members are typically made of elastomeric materials like neoprene or silicone to ensure a good seal.
• Ensuring Ink Flow: During printing, the capping station helps maintain consistent ink flow to the print heads. It also facilitates priming and cleaning of the ink system before printing begins.
• Cleaning Print Heads: The capping station is equipped with a pump and motor assembly. During head cleaning cycles, the pump creates a slight vacuum to draw fresh ink through the print heads. The ink deposited into the capping station is then sent to the waste ink container by the same pump. Additionally, the capping station may include a wiper assembly consisting of materials like fiber and rubber to clean the nozzle area of the print heads during cleaning cycles.

Compatibility and Structure
• Multi-Head Compatibility: The 8-head capping station is compatible with 8 print heads and is designed to work with specific printers. For example, the I3200 8-head capping station is suitable for models like the 4720 inkjet printer​​.
• Structure: The capping station typically consists of a receptacle with an internal chamber that aligns with the print heads. The receptacle features multiple apertures, each corresponding to a print head. The chambers in the receptacle are fluidly connected via fluid conduits to ensure uniform fluid distribution. The receptacle may also have ports for fluid intake and drainage. When the fluid level inside the receptacle falls below a predetermined level, a level sensor alerts the system to replenish the fluid. Conversely, when the fluid level exceeds the predetermined level, the system drains excess fluid.

Material
• Durable Frame: The frame of the capping station is often made of carbon steel with stainless steel cladding to ensure stability and durability​​.
• Sealing Members: As mentioned earlier, the sealing members surrounding the apertures are typically made of elastomeric materials like neoprene or silicone.
• Other Components: Some capping stations feature an anodized aluminum frame. For instance, the RCP181 rotary capping machine has a frame made of durable 304 stainless steel and anodized aluminum, which is easy to maintain and has a long service life​​.
