Epson DX5 Eco Printer Head Features
The Epson F1440-E1/DX5 ECO printhead is a 1-inch entry-level inkjet printhead supporting 8 ink colors, enabling high-speed and high-quality printing in industrial or commercial applications. It is widely used in eco-solvent printers manufactured in China and certain other countries, requiring no modification, coding, or decoder. This printhead can replace both first and second-generation encoded heads. It should not be used in Mutoh Valuejet or Mimaki JV33/JV5 printers due to differing voltage specifications, which result in inferior image quality. For genuine Mutoh or Mimaki replacement parts, please contact LovidPrint online.

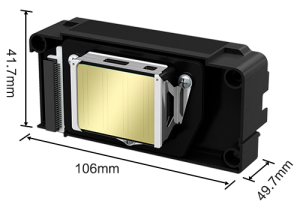

Product Dimensions – Epson DX5 Eco/F1440 Printer Head
Product Specifications – Epson DX5 Eco/F1440 Printer Head
| Product Name | F1440-E1/DX5 ECO |
| Ink type | Eco-Solvent Ink |
| Width × Depth × height (mm x mm x mm) | 106×49.7×41.7 |
| Weight (g | 97 |
| Number of nozzles (units) | 1440 |
| Distance between nozzles (inch) | 180 |
| Number of nozzle rows | 8 |
| The maximum number of ink colors supported | 8colors（180dpi/color） |
| Resolution | 180npi1line 360dpi/2line |
| Effective print width (mm) | 25.4 |
| Injection frequency (kHz) | 43（single）,14.4（Multi） |
| Droplet volume (pl) | 3.8-7-14-22 |
| Corresponding ink viscosity (mPa·s) | 4~5 |
